Azimut Magellano 25M Yacht

Previously called Magellano 25 Metri

The Magellano 25M from Italian builder Azimut is the entry-level trawler yacht in the Magellano range. The Magellano 25M is a yacht built from GRP, the semi-displacement hull design will reach a top speed of 25 knots.

A multiple award winner, the Azimut Magellano 25M can accommodate eight guests in four cabins. If you are interested in a new Azimut Magellano 25M for sale, it is designed for cruising and more.

Magellano 25M Features

  • Powerful modern superyacht trawler
  • Four excellent cabins
  • Upper deck lounge
  • 25knot top speed
  • Foredeck lounge
Azimut Magellano 25M
25.22m
  • Guests

    8 Max

  • Cabins

    4 Max

  • Crew

    3 Max

From The Manufacturer

Designed for endless voyages suspended between the sky and the sea, the Magellano 25M was born to reclaim the element of time. A work of art of surprising fascination, its exterior lines transcend the trends with their enduring and powerful presence. Inspiring interiors, illuminated by natural light that openly flows through, embody the marine allure in attractive nuances and softened geometries, permeating the vessel with enchantingness from stern to bow.


Awards

Winner

Robb Report 2021

Comeback

Winner

World Yachts Trophies 2020

Most Innovative Yacht (24-30m)

Finalist

Motor Boat Awards 2022

Custom Yachts

Finalist

Boat International Design & Innovation Awards 2021

Best Naval Architecture: Semi-Displacement or Planing Motor Yachts

Finalist

Boat International Design & Innovation Awards 2021

Innovation of the Year

Finalist

Boat International Design & Innovation Awards 2021

Outstanding Exterior Motor Yacht Design - 24m to 39.9m

360° Virtual Tour

Specs

  • Length
    25.22m
  • Accommodation
    8 Guests
  • Materials
    GRP Hull /
    Carbon Fibre Superstructure
  • Max. Range
    1070 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 25.22m
  • Beam 6.35m
  • Gross Tonnage 110 GT
  • Draft (full load) 1.9m
  • Fuel capacity 8,100 Litres
  • Fresh Water
    capacity
    1,500 Litres
  • Displacement (full load) 87,500 Kg
  • Max speed 25 Knots *
  • Cruising speed 22 knots *
  • Max Range 1070nm @10 knots
  • Hull GRP
  • Superstructure Carbon Fibre

Accommodation

  • Guests 8
  • Berth details 3 x Double 2 x Single
  • Total Cabins 4
  • Cabins 1 x Master 2 x Double 1 x Twin
  • All cabins en suite Yes
  • Guest heads 5
  • Dedicated day heads 1
  • Berth details 3 x Double 2 x Single
  • Crew 3
  • Crew cabins 2
  • Crew heads 1 (Optional 2)

Yacht Designers

  • Exterior Designer
    Ken Freivokh
  • Interior Designer
    Azimut & Vincenzo De Cotiis
  • Naval Architect
    Azimut R&D Dept. & Pierluigi Ausonio & Pierrejean Vision Design Studio

Engines & Performance

Standard Option



QTY

x 2

MAN

Performance

1400 HP

(1029 Kw)  each @ 2300 rpm

Maximum Speed

24 knots

Engine Details

Option #2



QTY

x 2

MAN

Performance

1550 HP

+150HP

(1140 Kw)  each @ 2300 rpm

Maximum Speed

25 knots

Engine Details

* Depending on engine option

Show Full Specs Hide Full Specs

Fleet examples of the
Azimut Magellano 25M

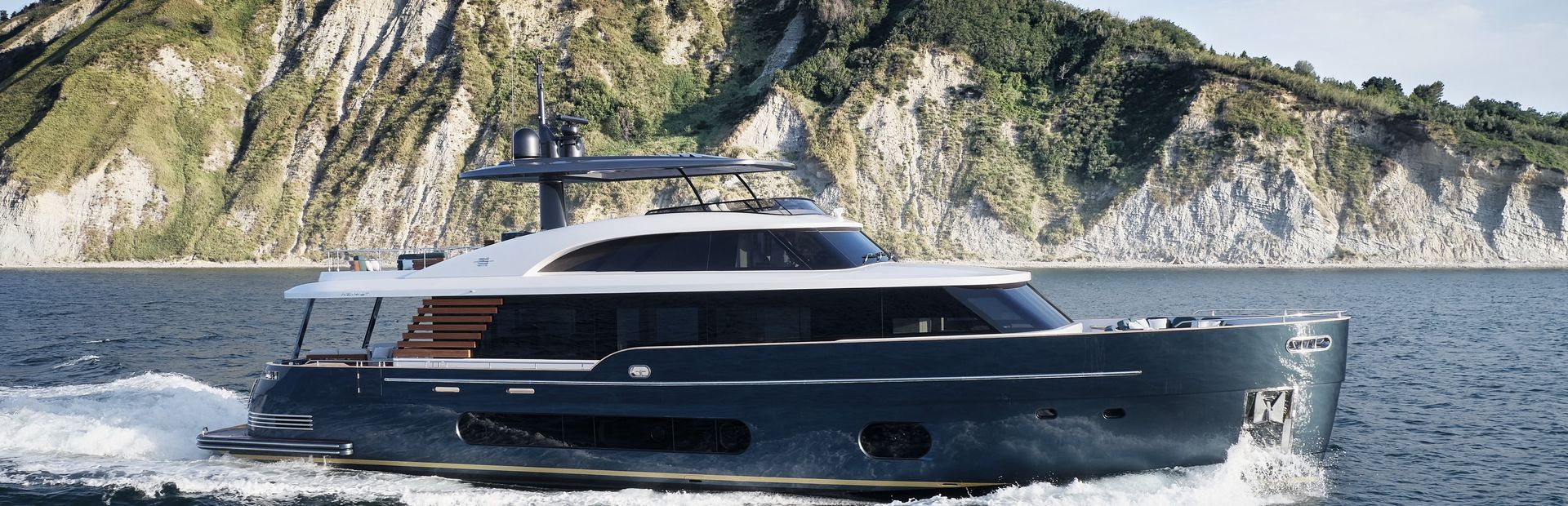

The following yachts are delivered examples of the Azimut Magellano 25M. These examples demonstrate the high level of personalisation this model offers.

Rivals to Consider

We've hand-picked a series of similar and direct rival yachts help you identify the strengths of the Azimut Magellano 25M among its peers.

Azimut Magellano 25M FAQ

A selection of frequently asked questions about the Azimut Magellano 25M model

  • Who designed Azimut Magellano 25M?
    The Exterior Designer for Azimut Magellano 25M is Ken Freivokh. The Interior Designer for Azimut Magellano 25M is Vincenzo De Cotiis. The Naval Architect for Azimut Magellano 25M is Pierrejean Vision Design Studio. The Naval Architect for Azimut Magellano 25M is Pierluigi Ausonio. The Interior Designer for Azimut Magellano 25M is Azimut. The Naval Architect for Azimut Magellano 25M is Azimut R&D Dept..
  • What is the size of Azimut Magellano 25M?
    The Length Overall of Azimut Magellano 25M is 25.22m . Her Beam is 6.35m. Her draft at full load is 1.9m.
