Cantiere Delle Marche RJ 115

vs.

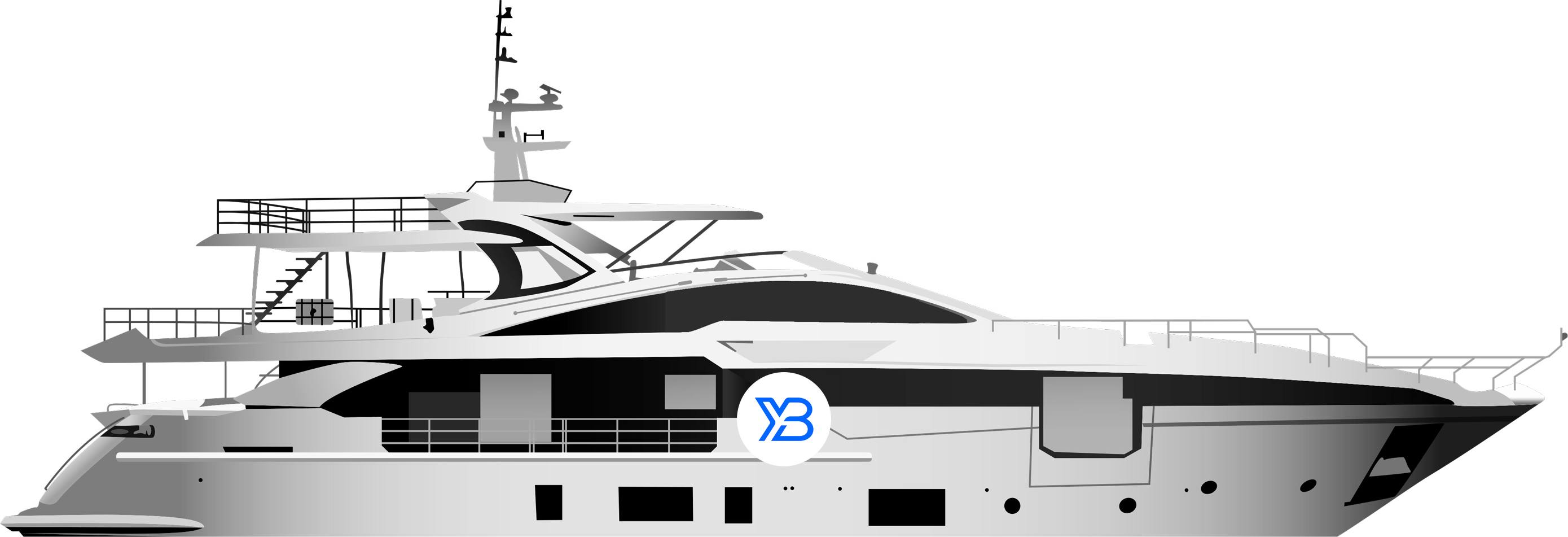

Azimut Grande 35 Metri

Model Name:	RJ 115	Grande 35 Metri
Builder:	Cantiere delle Marche	Azimut
Range:	Cantiere delle Marche RJ Range	Azimut Grande
Principal Characteristics
Body Type:	Superyacht	Superyacht
Use Types:	Cruising	Cruising
LOA:	35m	35m
Max Beam:	7.5m	7.5m
Draft:	2.3m  (Full Load)	1.86m  (Half Load}
Gross Tonnage:	-	269 GT
Displacement:	283 Tonnes   (Full Load)	154 Tonnes   (Full Load)
Hull Material:	Steel	GRP / Fibreglass  (GRP)
Superstructure:	Aluminium	Carbon Fibre
Fuel Capacity:	45,530 Litres	18,000 Litres
Fresh Water Capacity:	6,330 Litres	3,000 Litres
Black Water capacity:	1,100 Litres	-
Yacht Designers
Exterior Designer:	Francesco Paszkowski Design	Stefano Righini
Interior Designer:	Francesco Paszkowski Design	Achille Salvagni Architetti
Accommodation
Guests:	10 (Optional 12)	10
Cabins:	5	5
Berths:	3x Double2x Convertable	1x King2x Double4x Single
Guests Heads:	8	6
Crew
Crew:	7 to 7	6
Crew Cabins:	4	4
Crew Heads:	4	4
Engines & Performance
Max Speed:	13.5 knots	26 knots
Max Range:	5,500 NM @ 9 knots	2,022 NM @ 11.8 knots
Brand:	Caterpillar	MTU
Model:	C18 C ACERT C01 - U.S. EPA Tier 3 and IMO Tier II	16V 2000 M93
Qty:	x2	x2
Power:	715 bhp (533 Kw) each @ 2,100 rpm	2,400 bhp (1 Kw) each @ 2,450 rpm
Max Speed:	13.5 knots	26 knots
Cruising Speed:	12 knots @ 1800 rpm	21 knots @ 2200 rpm
Economic Speed:	9 knots	11.8 knots @ 1200 rpm
Max Range at Full Speed:	-	430 nm @ 26 knots
Cylinders:	6 Cylinder	16 Cylinder
Bore:	-	135 mm
