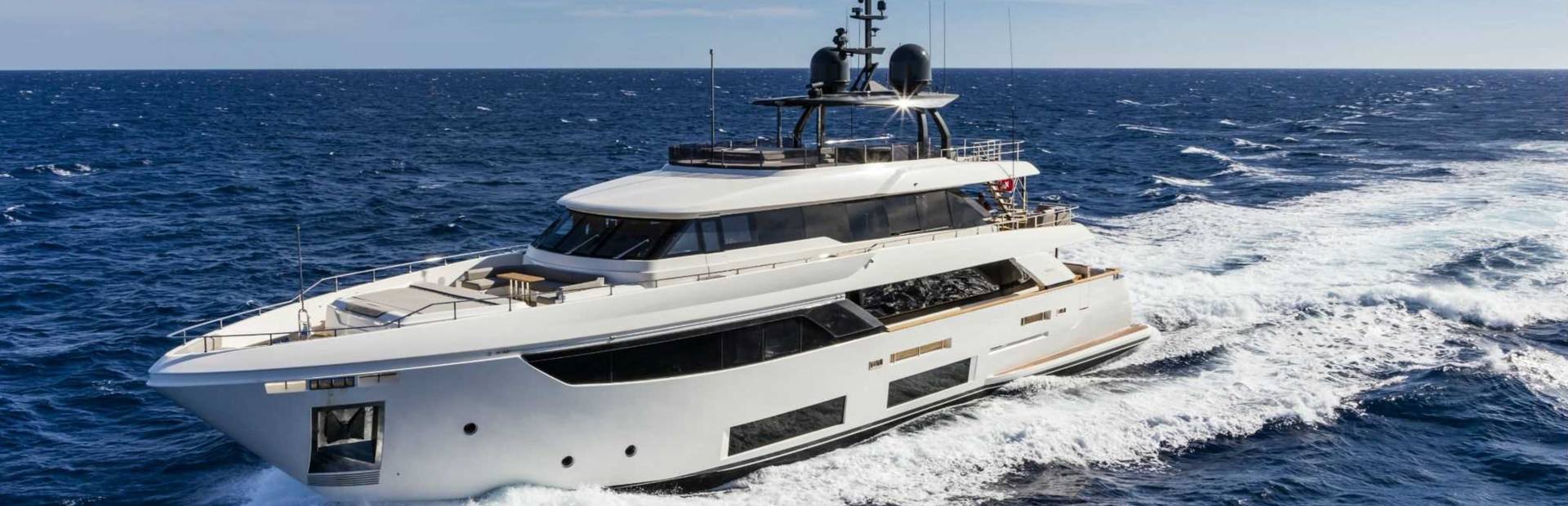

Custom Line Navetta 33 Yacht

The 33 is a superyacht from Italian builder Custom Line. A multi-award winning yacht, the 33 is constructed from GRP with a semi-displacement hull design returning a top speed of 16 knots.

The entry level model from the Navetta range, the Custom Line Navetta 33 has five cabins and can accommodate up to ten guests. If you are thinking of a new Custom Line Navetta 33 for sale, it is designed for cruising and more.

Interested in owning a Custom Line Navetta 33? This model is currently in production and can be customized to meet your specifications. Order a New Custom Line Navetta 33 Yacht tailored to your desires. Ready to purchase sooner? View All New & Used Custom Line Navetta 33 Yachts for Sale available now!

Custom Line Navetta 33
33m
  • Guests

    10 Max

  • Cabins

    5 Max

  • Crew

    6 Max

From The Manufacturer

The Navetta 33 offers fabulous spaces to owners and their guests across all four decks: from the wide body Master Suite forward on the main deck through to the four guest cabins on the lower deck. Thanks to the exterior panoramic terrace on the starboard side of the main deck and the magnificent opening windows on the stern side of the upper deck, the lounge areas and the interior and exterior dining areas are spacious and bright. The sun deck, with its whirlpool tub and large sun pad, is designed to provide moments of total privacy.

The crew also enjoys an unprecedented amount of space for a craft of this size: from the private captain's cabin located just behind the helm station on the upper deck, to the comfortable crew area, located forward on the lower deck.

Awards

Winner

Boat International Design & Innovation Awards 2018

Best Interior Design: Motor Yacht below 399GT

Winner

The World Superyacht Awards 2018

Best Three-deck Semi-Displacement or Planing Motor Yacht

Winner

World Yachts Trophies 2017

Best Exterior Design (24-38m)

Winner

World Yachts Trophies 2017

Best Exterior Design (24-38m)

Nomination

International Superyacht Society Awards 2018

Best Power 24m-40m

360° Virtual Tour

Deck Plans

Layout, Deck by Deck

Specs

  • Length
    33m
  • Accommodation
    10 Guests
  • Materials
    GRP Hull
    & Superstructure
  • Max. Range
    1850 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 33m
  • Beam 7.52m
  • Gross Tonnage 262 GT
  • Length waterline 28m
  • Draft (full load) 2.18m
  • Fuel capacity 18,700 Litres
  • Fresh Water
    capacity
    3,100 Litres
  • Grey water capacity 1,200 Litres
  • Black water capacity 1,200 Litres
  • Displacement (full load) 183 Tonnes
  • Transport height 9.13m
  • Construction height 12m
  • Dry weight 160,000kg
  • Max speed 16 Knots *
  • Cruising speed 13 knots *
  • Max Range 1850nm @10 knots
  • Hull GRP
  • Superstructure GRP

Accommodation

  • Guests 10
  • Berth details 1 x King 3 x Double 2 x Single
  • Max persons on-board 20
  • Total Cabins 5
  • Cabins 1 x Master 2 x VIP 1 x Double 2 x Twin
  • All cabins en suite Yes
  • Guest heads 7
  • Dedicated day heads 1
  • Berth details 1 x King 3 x Double 2 x Single
  • Crew 6
  • Crew cabins 4
  • Crew heads 3

Yacht Designers

  • Exterior Designer
    Zuccon
  • Interior Designer
    Zuccon
  • Naval Architect
    Zuccon & Ferretti Group Engineering Department

Engine Options & Performance

Standard Option



QTY

x 2

Performance

1400 HP

(1029 Kw)  each @ 2300 rpm

Maximum Speed

15 knots

Engine Details

Option #2



QTY

x 2

Performance

1650 HP

+250HP

(1213 Kw)  each @ 2300 rpm

Maximum Speed

16 knots

Engine Details

Option #3



QTY

x 2

Performance

1600 HP

+200HP

(1193 Kw)  each @ 2300 rpm

Maximum Speed

16 knots

Engine Details

* Depending on engine option

Show Full Specs Hide Full Specs

Rivals to Consider

We've hand-picked a series of similar and direct rival yachts help you identify the strengths of the Custom Line Navetta 33 among its peers.

Custom Line Navetta 33 FAQ

A selection of frequently asked questions about the Custom Line Navetta 33 model

  • The Naval Architect for Custom Line Navetta 33 is Ferretti Group Engineering Department. The Naval Architect for Custom Line Navetta 33 is Zuccon. The Interior Designer for Custom Line Navetta 33 is Zuccon. The Exterior Designer for Custom Line Navetta 33 is Zuccon.
  • The Length Overall of Custom Line Navetta 33 is 33m . Her Beam is 7.52m. Her Length at the waterline is 28m. Her Draft at full load is 2.18m
