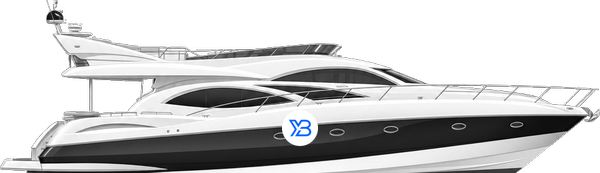

Sunseeker Manhattan 74 Yacht Mk1, 1997 - 2002

The 74 is a flybridge boat from British builder Sunseeker. The 74 is a yacht built from GRP, the planing hull design will reach a top speed of 33 knots.

Specs

  • Length
    23.05m (inc. pulpit)
  • Materials
    GRP Hull
    & Superstructure
  • Max. Range
    350 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 23.05m (inc. pulpit)
  • Beam 5.43m
  • Draft (full load) 1.5m
  • Fuel capacity 5,000 Litres
  • Fresh Water
    capacity
    920 Litres
  • Displacement (half load) 37,100 Kg
  • Height above
    waterline
    5m
    (nav. light mast)
  • Construction height 5.97m
  • Max speed 33 Knots *
  • Cruising speed 26 knots *
  • Max Range 350nm
  • Hull GRP
  • Superstructure GRP

Engine Options & Performance

Standard Option

QTY

x 2

Performance

800 HP

(597 Kw)  each @ 2300 rpm

Maximum Speed

-

Engine Details

Option #2

MAN D2842 LE406 Light Duty

QTY

x 2

Performance

KW only available

1,183 HP

(882 Kw)  each @ 2300 rpm

Maximum Speed

-

* Depending on engine option

Show Full Specs Hide Full Specs

Sunseeker Manhattan 74 FAQ

A selection of frequently asked questions about the Sunseeker Manhattan 74 model

  • The Length Overall of Sunseeker Manhattan 74 is 23.05m (inc. pulpit). Her Beam is 5.43m. Her Draft at full load is 1.5m
