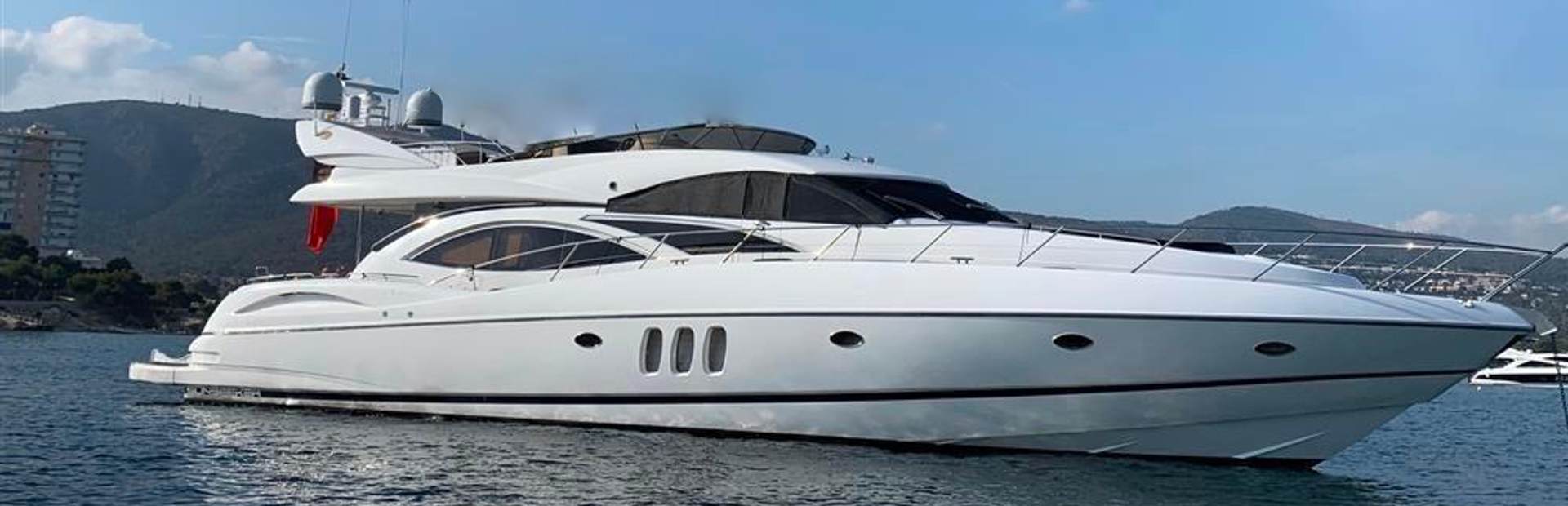

Sunseeker Manhattan 74 Yacht Gen 2, 2002 - 2003

The 74 is a flybridge boat from British builder Sunseeker. Constructed from GRP, the 74 has a planing hull design and a top speed of 33 knots.

Sunseeker Manhattan 74
75' 7" (inc. pulpit)

Specs

  • Length
    75' 7" (inc. pulpit)
  • Materials
    GRP Hull
    & Superstructure
  • Max. Range
    350 nm

Show Full Specs Hide Full Specs

Full Specification

Principal Characteristics

  • Length overall 75' 7" (inc. pulpit)
  • Beam 17' 10"
  • Length waterline ( half load) 58' 5"
  • Draft (full load) 4' 11"
  • Fuel capacity 1,321 Gallons
  • Fresh Water
    capacity
    243 Gallons
  • Displacement (half load) 81,791 Lbs
  • Height above
    waterline
    16' 5"
    (nav. light mast)
  • Construction height 19' 7"
  • Max speed 33 Knots *
  • Cruising speed 26 knots *
  • Max Range 350nm
  • Hull GRP
  • Superstructure GRP

Engine Options & Performance

Standard Option

QTY

x 2

Performance

800 HP

(597 Kw)  each @ 2300 rpm

Maximum Speed

-

Engine Details

Option #2

MAN D2842 LE406 Light Duty

QTY

x 2

Performance

KW only available

1,183 HP

(882 Kw)  each @ 2300 rpm

Maximum Speed

-

* Depending on engine option

Show Full Specs Hide Full Specs

Sunseeker Manhattan 74 FAQ

A selection of frequently asked questions about the Sunseeker Manhattan 74 model

  • The Length Overall of Sunseeker Manhattan 74 is 75' 7" (inc. pulpit). Her Beam is 17' 10". Her length at the waterline at half load is 58' 5". Her Draft at full load is 4' 11"
